Thiết bị đo lực căng dây belt-IMADA RTM-400

Sản Phẩm

Thiết bị đo lực căng dây belt-IMADA RTM-400
Giá : Liên hệ
MASP : RTM-400
Nhà sản xuất : IMADA
THIẾT BỊ ĐO LỰC CĂNG DÂY BĂNG TRUYỀN, DÂY BELT VỚI ĐỘ CHÍNH XÁC CAO.

Chi tiết Sản phẩm

IMADA BELT TENSION METER

Code : RTM-400
Brand : Imada

Imada Belt Tension Meter

RTM-400

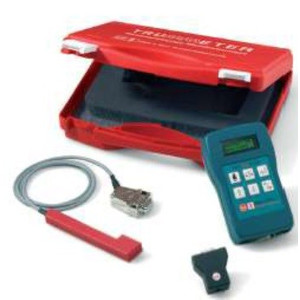

Picture Gallery

Clip-on sensor for one-handed operation

Sensor with cable (length about 1.2 m) for the <br /> use in hard to reach places

Handling

Formula for calculating the static tension

The measurement can be made only with stationary drive. The belt tension is
preferably always on the longer belt in the middle between the two drive wheels measured. The
distance above the belt should be approximately 3 - 20 mm. Depending on the ambient light and belt surface, the
measurement from a distance of max. 60 mm done with less light and better reflection (can
be achieved by attaching a black mark) allow a larger measuring distance measurement. The belt is displaced by striking self-oscillation. This static characteristic frequency ismeasured by the probe by means of a pulsed light. This is zuachten that a sufficient re- ensures flexion of the light from the belt. To avoid such a reflector attached.

Specifications

Measuring range:	10-800 Hz
Digital sampling error:	<1%
Display error:	± 1 Hz
Total error:	<5%
Measurement units:	Hz (belt frequency) or N, lbf (strand force)
Measuring distance:	3-20 mm
Display:	LCD, 2 lines, 16 characters
Language Selection:	10 languages (German, English, French, Italian, Spanish, Portuguese, swedish, norwegian, danish, finnish)
Input limits:	free span length: up to 9.99 m belt mass: 9,999 kg / m
Temperature range:	Operation: +10 ° C ... + 50 ° C, Transport: -5 ° C ... + 50 ° C
Humidity:	max. 85% rel. Humidity
Power supply:	9 V - Battery (E-Block)
Housing:	Plastic (ABS)
Dimensions:	126 x 80 x 37 (LxWxH)
Net weight (gross):	170 g (660 g)
