nhiệt kế đo độ ẩm nhiệt độ để bàn-sato 8092-50

Sản Phẩm

nhiệt kế đo độ ẩm nhiệt độ để bàn-sato 8092-50
Giá : Liên hệ
MASP : 8092-50
Nhà sản xuất : SATO KEIRYOKI
Digital indicator which displays temperature and humidity simultaneously with LED (height of character: 57mm) Input: 0 to 1VCD Angle of display panel is changeable. Temperature/humidity transmitter SK-RHC-V (0 to 1V) can connect with.

Chi tiết Sản phẩm

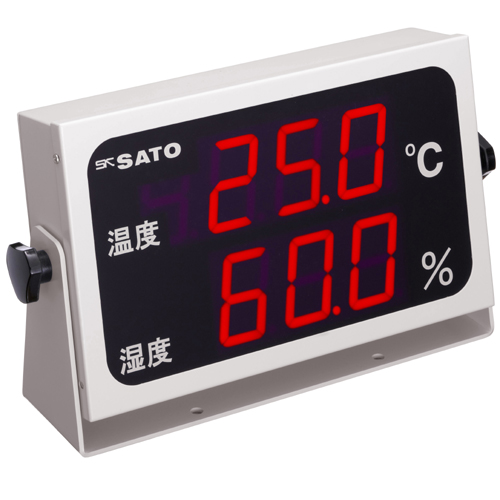

Temperature/humidity Indicator Model SK-M350-TRH

Click to enlarge

Cat.No.8092-50
Temperature/humidity Indicator Model SK-M350-TRH
Model
SK-M350-TRH

Digital indicator which displays temperature and humidity simultaneously with LED (height of character: 57mm) Input: 0 to 1VCD
Angle of display panel is changeable.
Temperature/humidity transmitter SK-RHC-V (0 to 1V) can connect with.

Features

	*		Digital indicator which displays temperature and humidity simultaneously with LED (height of character: 57mm)
	*		Angle of display panel is changeable.
	*		Input: 0 to 1VDC
	*		Temperature/humidity transmitter Model SK-RHC-V (0 to 1V) can connect with this indicator (built-in the power supply for SK-RHC-V)
	*		Alarm function (upper/lower limits) is available at option. * Buzzer and rotating warning light can connect with this indicator.

Features

Display	7 segment LED height of character: approx. 57mm
Display range	Temperature: -15.0 to 65.0°C Humidity : 5.0 to 99.9%rh Display accuracy: ±(0.3 + 1digit)°C/%rh
Input	Temperature: -150 to 650mVDC (-15.0 to 65.0°C) Humidity: 50 to 999mVDC (5.0 to 99.9%rh)
Operation ambient	0 to 50°C less than 85%rh (no condensing)
Power requirement	12VDC (exclusive AC adapter is attached) * AC adapter primery side: 100 to 240VAC 50/60Hz 0.3A, Secondry side: 12VDC 1A
Dimensions & weight	360(w) x 202(H) x 85(D)mm approx. 3.7kg
Accessories	AC adapter
Options	Alarm functions (upper/lower limits) * Buzzer and rotating warning light can connect with.
