NAM CHÂM CẨU KANETEC LPH SERIES

Sản Phẩm

NAM CHÂM CẨU KANETEC LPH SERIES
Giá : Liên hệ
MASP : LPH SERIES
Nhà sản xuất : KANETEC
KANETEC chuyên sản xuất các thiết bị liên quan đến từ tính, LPH series là dòng thiết bị dùng từ tính hút các vât liệu từ tính và nâng vật. với những cải tiến về nút khoá an toàn khi nâng và thiết bị nhỏ gon, được tin dùng.

Chi tiết Sản phẩm

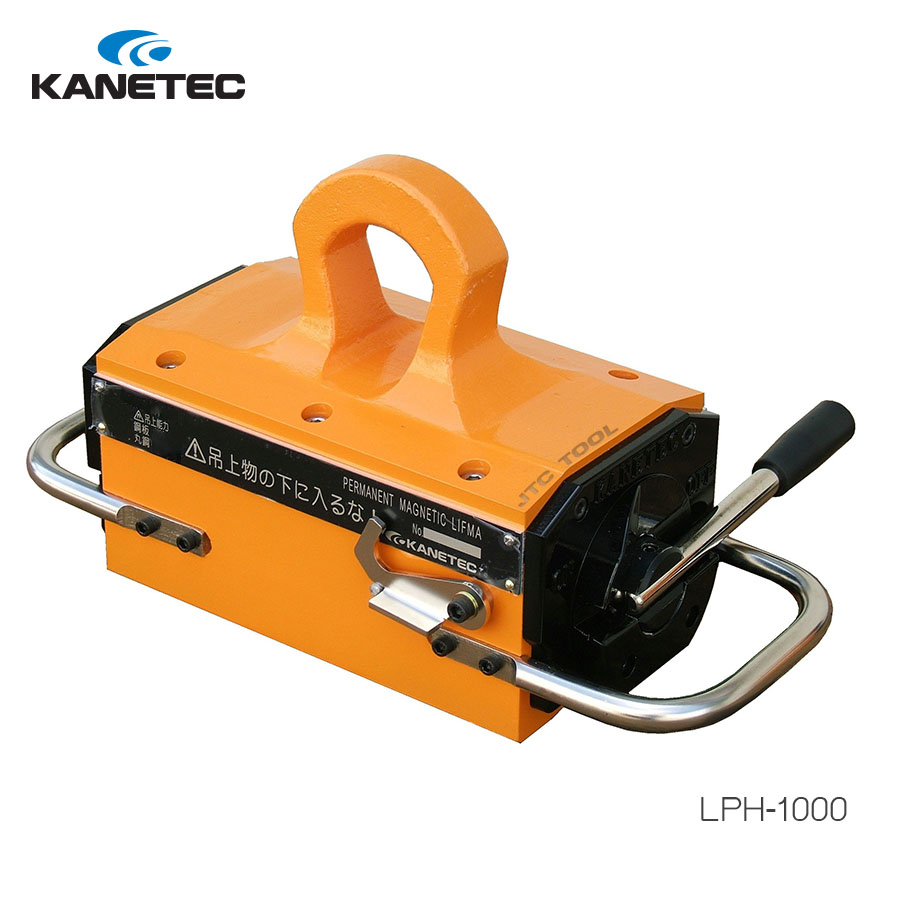

PERMANENT MAGNETIC LIFMA [Model LPH]

CATALOG

The new model is released, which is made smaller and lighter, and which handle rotating operation for thinner sheets lighter , and the safety performance is facilitated by which safety stopper is equipped.

[Application]
Permanent magnetic type lifting magnets used as a lifting section of cranes and hoists for transportation of steels in warehouses or machining shops or for mounting and dismounting workpieces to and from machine tools.
These are suitable for transporting semi-finished products having a fl at surface such as machine parts, press dies and plastic molds and for transporting mill scale steel plates and flat steels.
[Features]

The larger size model, which lifting capacity is improved while it is made smaller and its weight is made lighter, is newly added to release
By making its handle rotating operation lighter than the conventional type, the ON/OFF operation for thinner sheets, which was diffi cult particularly with the larger model, is now possible.
As well as the conventional products, V groove is provided on the attractive face and it respond to various kinds of work pieces such as steel plate, round bar, pipe and so on.
By making the angle of handle rotation wider, its stability, safety feeling when it is operated, has been improved.
In addition to handle lock, which has been supplied, safety stopper is equipped as standard specifi cations. Therefore, double safety performance is facilitated.
It is easy to move and/or position the Lifma by guards on the both of forward and rear sides.

Precautions for use
The permanent magnetic Lifma LPH Series are not of waterproof construction. Ensure no water will enter or stick to them. Rust and scratches on the attractive face affect the holding power adversely. Repair it periodically.

[mm(in)]
Model	Liffting Capacity		Dimensions								Mass
Model	Steel Plate	Round dteel	W	L	H	G	D	E	F	θ	Mass
LPH-150	150kg/330lb	100kg/220lb	95 (3.74)	110 (4.33)	167 (6.57)	240 (9.44)	39 (1.53)	59 (2.32)	14 (0.55)	130 (5.11)	10kg/22.0lb
LPH-300	300kg/661lb	200kg/440lb	140 (5.51)	140 (5.51)	191 (7.51)	295 (11.6)	45 (1.77)	78 (3.07)	20 (0.78)	170 (6.69)	19kg/41.8lb
LPH-600	600kg/1323lb	400kg/881lb	140 (5.51)	240 (9.44)	213 (8.38)	395 (15.5)	60 (2.36)	100 (3.93)	25 (0.98)	170 (6.69)	33kg/72.7lb
LPH-1000	1000kg/2205lb	600kg/1323lb	180 (7.08)	320 (12.5)	284 (11.1)	505 (19.8)	65 (2.55)	110 (4.33)	30 (1.18)	175 (6.89)	80kg/176lb
LPH-1500	1500kg/3307lb	800kg/1764lb	180 (7.08)	400 (15.7)	304 (11.9)	585 (23.0)	75 (2.95)	130 (5.11)	30 (1.18)		100kg/220lb
LPH-2000	2000kg/4410lb	900kg/1984lb	205 (8.07)	500 (19.6)	319 (12.5)	685 (26.9)	80 (3.14)	150 (5.90)	35 (1.37)		130kg/286lb
*The lifting capacity is indicated by a value that is a third of the maximum holding power(safety factor 3).

Steel plate lifting standard(Flat steel plates)

[mm(in)]

Model (LPH)	Thickness
Model (LPH)	t6	t12	t25	t50	t100
150	750(29.5) 600(23.6)X 1000(39.3)	850(33.4) 600(23.6)X 1200(47.2)	650(25.5) 600(23.6)X 720(28.3)	500(19.6) 600(23.6)X 400(15.7)	350(13.7) 600(23.6)X 200(7.87)
300	1250(49.2) 900(35.4)X 1700(66.9)	1250(49.2) 900(35.4)X 1700(66.9)	950(37.4) 900(35.4)X 1000(39.3)	700(27.5) 900(35.4)X 550(21.6)	500(19.6) 900(35.4)X 300(11.8)
600	1250(49.2) 1200(47.2)X 1300(51.1)	1500(59.0) 1200(47.2)X 1900(74.8)	1300(51.1) 1200(47.2)X 1400(55.1)	1000(39.3) 1200(47.2)X 800(31.5)	750(29.5) 1200(47.2)X 450(17.7)
1000	1450(57.0) 1500(59.0)X 1400(55.1)	1600(62.9) 1500(59.0)X 1650(64.9)	1550(61.0) 1500(59.0)X 1600(62.9)	1300(51.1) 1500(59.0)~ 1200(47.2)	1000(39.3) 1500(59.0)X 650(25.5)
1500	-	1650(64.9) 1500(59.0)X 1800(70.8)	1700(66.9) 1500(59.0)X 1900(74.8)	1550(61.0) 1500(59.0)X 1600(62.9)	1100(43.3) 1500(59.0)X 800(31.4)
2000	-	-	1800(70.8)	1750(68.8) 1800(70.8)X 1700(66.9)	1300(51.1) 1800(70.8)X 950(37.4)
*The thinner the thickness of plates are, the harder the handle operation becomes. The return of the handle at the time of release is faster.

Round steel lifting standard(Round steel)

[mm(in)]

Model (LPH)	Thickness
Model (LPH)	Min. dia	Max. dia	Pipe allowable dia *
150	φ40(1.57)X2100(82.6)L	φ200(7.87)X300(11.8)L	φ40(1.57) - 200(7.87)
300	φ50(1.96)X3000(118.1)L	φ400(15.7)X200(7.87)L	φ50(1.96) - 600(23.6)
600	φ50(1.96)X3000(118.1)L	φ500(19.6)X250(9.84)L	φ50(1.96) - 600(23.6)
1000	φ100(3.93)X3000(118.1)L	φ500(19.6)X300(11.8)L	φ100(3.93) - 700(27.5)
1500	φ100(3.93)X3000(118.1)L	φ500(19.6)X400(15.7)L	φ100(3.93) - 700(27.5)
2000	φ150(5.90)X3000(118.1)L	φ500(19.6)X450(17.7)L	φ150(5.90) - 700(27.5)
*Kindly take note carefully that the capacity varies according to pipe wall thickness. The thinner the thickness of plates are, the harder the handle operation becomes. The return of the handle at the time of release is faster. Oval and bent pipes, even though they are short, are dangerous to lift. The lifting capacity varies according to diameters of round steel. When a workpiece is longer than 3 m, it is dangerous to lift with one unit only. At the maximum diameter, workpieces shorter than the attractive face cannot be lifted.
