MÁY ĐO TỐC ĐỘ VÒNG QUAY- ONO SOKKI SE SERIES

Sản Phẩm

MÁY ĐO TỐC ĐỘ VÒNG QUAY- ONO SOKKI SE SERIES
Giá : Liên hệ
MASP : SE-1200, SE-2500A
Nhà sản xuất : ONO SOKKI
The SE-series is a new-designed appearance of our long-selling digital engine tachometer. Indigo blue in color, it is designed to fit snugly into the palm of your hand. A memory function (10 data) has been added to the original specifications of previous model.

Chi tiết Sản phẩm

Digital Engine Tachometer

SE-1200

(measuring ignition spark noise)

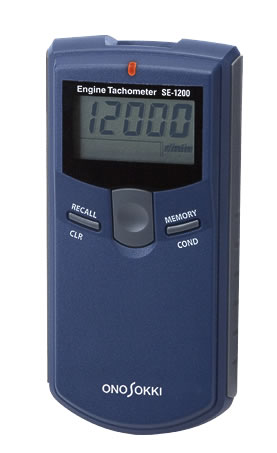

Photo (SE-1200 Hand-held Digital Engine Tachometer)

The SE-1200 is a new-designed appearance of our long-selling digital engine tachometer. Indigo blue in color, it is designed to fit snugly into the palm of your hand. A memory function (10 data) has been added to the original specifications of previous model.

Featute

A large-size LCD device has been incorporated into the compact, lightweight body.
Easy and safety operation by non-contact measurement.
Measurement can be performed in 1 r/min resolution covering a wide measurement range.
The cylinder/cycle settings enable use with various gasoline engines.
Equipped with a convenient memory function for checking of the measurement results (up to 10 data can be stored in memory.)
Over-range display function—if the measured value exceeds the measurement range, the maximum value for that range is displayed together with an “ERROR” mark.
After measurement has been completed, the latest measured value is displayed for approximately 30 seconds.

Measurement Method

Specifications

Applicable engines

Gasoline engines

Detection method

detection of electrical ignition pulse from the spark plug

Detection distance

30 to 200 mm

Target object of detection

High-tension cords (spark-plug cords)

Measurement ranges

2-cycle	4-cycle	Measurement range (r/min)
-	1 cylinder	100 to 20000
1 cylinder	2 cylinders	100 to 20000
-	3 cylinders	100 to 20000
2 cylinders	4 cylinders	100 to 20000
-	5 cylinders	100 to 20000
3 cylinders	6 cylinders	100 to 20000
4 cylinders	8 cylinders	100 to 15000/
-	12 cylinders	100 to 10000

Measurement accuracy

100 to 12,499 r/min ± 1 r/min
12,500 to 20,000 r/min ± 2 r/min

Measurement resolution

1 r/min

Over-range display

If the measured value exceeds the measurement range, the maximum value for that range is displayed together with an “ERROR” mark on the display unit.

Low battery display

The “LOW” mark lights when the battery voltage drops below 3.3 V.

Display unit

LCD, 5-digit

Character height

10.5 mm

Display refresh time

1 s, automatic update (2 s when the sensor signal exceeds 1 s)

Operating temperature range

0 to ＋40 °C

Storage temperature range

-10 to ＋60 °C

Power source

Three AAA-type batteries

Continuous measurement time

Approx. 100 hours
(when alkaline batteries are being used at a temperature of 20 ºC.)

Outer dimensions

129 × 62 × 26.4 mm

Weight

Approx. 90 g (excluding batteries)

Accessories

AAA-type battery x 3 pieces

Gasoline Engine Tachometer

SE-2500A

SE-2500

SE-2500A is a non-contact handheld tachometer designed for gasoline engine measurement. Detection, measurement, and display parts are all in one unit and batteries are built in the unit. Moving the detector (head of the SE-2500A) close to an ignition coil can measure rotation speed at the unit of 1 r/min or 0.01 r/s. Up to 20 measurement data can be stored in the internal memory that is convenient for later checking.

Both analog (able to switch over to monitor output) and pulse outputs are provided as standard. Analog output signal can be used for the data recording by recording device. Monitor output is used for checking sensor waveform or input signal of FFT Analyzer. Pulse output signal is used for tracking analysis signal for FFT Analyzer.

* IP-2800 External sensor (discontinued) is not provided as standard.

VP-201/1210
External detector (option)

Featute

Easy and safe measurement by non-contact measurement method

Accurate rotation speed measurement by the unit of 1 r/min or 0.01 r/s

Easy to identify the displayed value with large LCD with backlight even when the surrounding is dark

Up to 20 data can be stored by memory function

Analog output	0 to 1 V/0 to F.S (F.S. : can be set optionally), 10-bit D/A conversion
Pulse output	Hi : +4.5V or more, Lo : +0.5V or less

Rotation speed of 4-cilinder diesel engine can be measured with the VP-201/1210 (optional detector) *

* It may not be measured depending on an engine.

Analog and Pulse outputs are provided as standard

Measurement method

Specifications Summary

Applicable engines

Gasoline engines

Calculation method

Cycle calculation method

Measurement time

Within 1s + the time required for one cycle of input signal

Measurement unit

r/min, r/s

Measurement ranges

2-cycle	4-cycle	Number of rotations (r/min)
-	1 cylinder	120 to 20000 r/min
1cylinder	2 cylinders	120 to 20000 r/min
-	3 cylinders	120 to 20000 r/min
2 cylinders	4 cylinders	120 to 20000 r/min
-	5 cylinders	120 to 20000 r/min
3 cylinders	6 cylinders	120 to 15000 r/min
4 cylinders	8 cylinders	120 to 12000 r/min
-	10 cylinders	120 to 10000r/min
-	12 cylinders	120 to 8000r/min

(r/s is the numerical value obtained when the r/min measurement value is divided by 60)

Measurement
accuracy

Display value*× (±0.02 %)± 1 count
*The display value is the count value excluding figures after the decimal point.

Detection method

Electromagnetic induction

Detection distance

10 to 200 mm

Detected object

Ignition coil

Selection of number of cylinders · number of cycles

By internal signal selector

Display

5-digit, LCD, 7-segtment, with backlight (character height : 10.2 mm)

Over-range function

The over-range alarm (ERROR mark) is displayed when the measured value exceeds the display range.

Rotation upper limit alarm function

The upper limit alarm (↑ mark) is displayed when the number of rotations exceeds the preset upper limit value.

Analog output

Output with respect to the displayed rotation values.

Output voltage : 0 to 1 V/0 to full scale (full scale : can be set optionally)
Conversion method : 10-bit D/A conversion
Linearity : ± 1 %/ full scale
Output update time : within 50 ms＋the time required for one cycle
Temperature stability : ±0.05 %/full scale / ℃ (span＆zero)
Setting error : ±0.5 % / full scale
Load resistance : 100 kΩ or more

Monitor output

Analog output for monitoring purpose after waveform reshaping of the sensor signal (Analog or monitor output selectable)
