MÁY ĐO ĐỘ ỒN, RUNG- ONO SOKKI LA SERIES

Sản Phẩm

MÁY ĐO ĐỘ ỒN, RUNG- ONO SOKKI LA SERIES
Giá : Liên hệ
MASP : LA-3570, LA-3560,
Nhà sản xuất : ONO SOKKI
These sound level meters were designed with an emphasis on “measuring while listening to sound” in addition to the original features of measurement and calculation. By adding various options, the LA-3000 can be upgraded to an analyzer, a recorder, and a comparator, performing more than just a sound level meter. You can check the proper recording of data and the condition of the object via headphones, and see the analysis waveform on the large easy-to-see screen in order to carry out reliable measurement confidently at a site that does not permit any failure. Measurement, recording, analysis, and checking can be performed by a single item of equipment, thereby improving the measurement efficiency substantially. For more detailed analysis, analysis software made by Ono Sokki is useful such as waveform analysis, sound quality evaluation, or fluctuation sound analysis.

Chi tiết Sản phẩm

These sound level meters were designed with an emphasis on “measuring while listening to sound” in addition to the original features of measurement and calculation. By adding various options, the LA-3000 can be upgraded to an analyzer, a recorder, and a comparator, performing more than just a sound level meter.
You can check the proper recording of data and the condition of the object via headphones, and see the analysis waveform on the large easy-to-see screen in order to carry out reliable measurement confidently at a site that does not permit any failure.
Measurement, recording, analysis, and checking can be performed by a single item of equipment, thereby improving the measurement efficiency substantially.

For more detailed analysis, analysis software made by Ono Sokki is useful such as waveform analysis, sound quality evaluation, or fluctuation sound analysis.

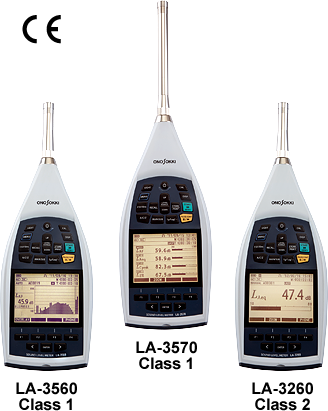

LA-3570 Class 1 (high sensitivity type)	Suitable for measuring small sounds in a sound insulating box or similar environment etc.
LA-3560 Class 1 (wide band type)	Suitable for making measurements across the entire audible range
LA-3260 Class 2	Suitable for measuring environmental noise up to 8 kHz

Features

3.5-inch large easy-to-see screen
Direct keys for easy operation
Wide linearity range of 110 dB, no need of range switching
Quad-channel screen (Up to four different sound level calculation results can be displayed simultaneously.)
Enables to measure while listening, and record the sound under measurement
Adding options can upgrade the models into higher performance device to serve as an analyzer, a recorder, and a sound comparator. Measurement, recording, analysis and judgment all with the same device
Conforms to IEC 61672-1, JIS C1509-1

Illustration (Measurement screen formats(example), Easy display selection, Two outputs possible at a time, Auto memory)

Illustration (LA-3000 series Rear panel)

Specification

		LA-3570	LA-3560	LA-3260
Applying standard		IEC 61672-1: 2002 Class 1 JIS C 1509-1: 2005 Class 1		IEC 61672-1: 2002 Class 2 JIS C 1509-1: 2005 Class 2
Measurement range (IEC, JIS)		A:22 to 130 dB C:28 to 130 dB Z:36 to 130 dB	A:27 to 140 dB C:32 to 140 dB Z:38 to 140 dB	A:26 to 140 dB C:30 to 140 dB Z:36 to 140 dB
Intrinsic noise		A:14 dB or less C:20 dB or less Z:28 dB or less	A:19 dB or less C:24 dB or less Z:30 dB or less	A:20 dB or less C:24 dB or less Z:30 dB or less
Frequency range (IEC, JIS)		10 Hz to 15 kHz	10 Hz to 20.0 kHz	10 Hz to 8.0 kHz
Microphone		MI-1211 1/2-inch bias type	MI-1235 1/2-inch electret type	MI-1433 1/2-inch electret type
Sensitivity level (re. 1 V/Pa)		-20 dB ± 1.5 dB	-29 dB ± 3 dB	-29 dB ± 3 dB
Microphone preamplifier		MI-3310	MI-3230
Linearity range		Wide range: 110 dB / Normal range: 80 dB
Level range		7 ranges 20 to120 dB / 50 to 120 dB / 40 to 110 dB / 30 to 100 dB / 20 to 90 dB / 10 to 80 dB / 0 to 70 dB	7 ranges 30 to 130 dB / 60 to 130 dB / 50 to 120 dB / 40 to 110 dB/ 30 to 100 dB / 20 to 90 dB / 10 to 80 dB
Reference range		50 to 120 dB
Time weighting		F(fast) , S(slow), I(impluse), 10 ms
Frequency weighting		A,C and Z
Measurement items		L_p, L_eq, L_E, L_peak, L_max, L_min, L_N ( L₅, L₁₀, L₅₀, L₉₀, L₉₅, L_LO,L_HI, L_AV and two more any L_N data)
Sampling interval		15.6 μs (L_p, L_eq, L_E, L_max, L_min, L_peak), 100 ms (L_N)
Measurement (calculation) time		Manual (0 sec), user-specified setup: 0.1 to 199 hr. 59 min. 59.9 sec. Resolution:0.1sec
Total time		0 sec. to 199 hr. 59 min. 59.9 sec. resolution: 0.1sec
Interval time		1 min to 24 hr. resolution: 1 min
Start mode		Manual start, timer start, count down start, level start, external control (shunts the external control terminal)
Dual mode function		Provided as standard (simultaneous measurement of 2 kinds selected from 3 conditions of frequency weighting x 4 conditions of time weighting)
Quad mode function		Provided as standard (simultaneous measurement of 4 kinds selected from 3 conditions of frequency weighting x 4 conditions of time weighting)
Display device		3.5” LCD with white backlight
Digital display		4-digit / resolution 0.1 dB / updated every 1s
Bar indicator		Wide range: 100 dB of display range / Normal range: 70 dB of display range
Remaining battery level display		4-step display
Memory function		Stored in an SD/SDHC card (SDHC card: up to 32 GB is available)
	Mode	MANUAL, AUTO (instantaneous value, calculated value), RECORD (WAVE file, 64 kHz sampling…required for the LA-0354), LOGG10, LOGG100
Panel condition memory		Panel Condition (SD/SDHC), power off memory
Basic measurent mode		5 modes (EZ1:L_Aeq + L_Cpeak / EZ2: Record / EZ3: Logging 100 ms / EZ4: NC / EZ5: Loudness (under construction)
Clock function		Built-in (Year / month / day / hour / minute) retention time of content: approx.5 years (charging time: 24 hours from entirely discharge state)
Backup function		Stores measurement conditions into the built-in memory
Calibration signal		Electronic calibration by the built-in transmitter (1 kHz sine wave) Wide-range: -16 dB of full-scale / Normal range: -6 dB of full-scale
Recommended calibrator		SC-3120
Phone output (headphone output)		Actual sound or recorded sound (playback sound) *Selected 1 band of actual sound or recorded sound (playback sound) by 1/1 or 1/3 filter mode when the option (LA-0351/0352) is installed. Maximum output: 10mW (63Ω :at 1kHz) connector:stereo3.5Φ
AC Output		Outputs one of A, C, or Z interlocked with the main display, update interval: 15.6 μs
	AC Output level	Output level: 0.707 Vrms ±5% (normal range), 2.234 Vrms ±5% (wide range) Output impedance 50 Ω±2%, load resistance 10 kΩ or more, offset voltage ±10mV or less
AC / DC output		Selectable from DC, AC-Z or Through
	DC output level	2.5V ±20 mV (normal range), 2.5 V±10 mV (wide range), Scale factor 0.25 V ±10 mV/10dB
	AC-Z output level	Output level: 0.707 Vrms ±5% (normal range), 2.234 Vrms ±5% (wide range) Output impedance 50 Ω±2%, load resistance 10 kΩ or more, offset voltage ±10mV or less
	Through output level	0.707 Vrms ±5% (normal range, wide range) Output impedance 50 Ω±2%, load resistance 10 kΩ or more, offset voltage ±10mV or less
Comparator output		Outputs the status in open collector signal after comparing the setup value with the calculated value.(required for the LA-0355)
External control input		Operation: Reset and start Control voltage: non-voltage contact input Input pulse width: 200 ms or more Absolute max. input voltage: 24.0V
Interlocking on/off function with an external power supply		The main unit is activated automatically when the power is supplied from an AC adapter. (required for the LA-0357) *When this function is installed, the LA-3000 series does not operate on battery power.
Interface	RS-232C	Baud rate: 9600, 115200 bps, AX-5022 cable (sold separately)
	USB	Compliant with USB storage class specification ver.1.1, USB connection cable :USB (A) male-USB(mini-B 5-pin) male (sold separately)
	External memory	SD/SDHC memory card (SDHC card: up to 32 GB is available)
*Microphone extension^1**		103 m (CE marking compliant: up to 30 m)
Power supply		Type AA battery (alkaline battery cell or rechargeable battery cell) x 4 pieces or AC adapter (PB-7090 power consumption: approx. 7 VA when at 100VAC )
*Battery life (continuous use)^2**		LR6 alkaline battery cell: approx. 8 hours Ni-MH secondary battery: approx. 8 hours
Operating (storage) temperaature range		-10 to 50 °C (20 to 60 °C)
Operating (storage) humidity range		22 to 90 % RH (10 to 90 %RH) with no condensation
Outer dimensions		Approx. 379 (H) x 106 (W) x 49.3 (D) mm	Approx. 311 (H) x 106 (W) x 49.3 (D) mm
Weight		Approx. 680 g (including batteries)	Approx. 630 g (including batteries)
Accessories		AC adapter (PB-7090), signal cable (AX-501), windscreen (Φ70 mm), hand strap, alkaline type AA battery x 4 pieces, carrying case (including shoulder belt), SD memory card (1 GB), instruction manual

Please use a recommended SD card when you use an optional function. For more details about the recommended SD card, please contact your nearest distributor or send an e-mail (overseas@onosokki.co.jp) to us.
*1.The described value is extendable length when the exclusive cable is used.
*2. It depends on the using status such as operation mode, memory mode, and backlight.
