PHASCOPE® PMP10 coating thickness measuring instrument
for general use
2 PHASCOPE® PMP10
The hand-held PHASCOPE® PMP10 is ideally suited
for quality control in the electroplating and printed
circuit board (PCB) industries. Because the instrument
employs the phase-sensitive eddy current method
(ISO 21 968), it allows the measurement of metal
coatings on any substrate. A specially designed
probe even enables measurements in PCB throughholes.
Applications
The phase-sensitive eddy current method offers great
advantages in measuring small objects such as
screws, nuts and bolts, since the geometry of the part
being measured exerts very little influence on the
measurement itself: Even rough surfaces can be
measured precisely with the PHASCOPE® PMP10.
This method also enables non-contact measuring; for
example, the thickness of copper plating on a circuit
board can be measured irrespective of protective
lacquer coatings.
Using specialised probes optimised for specific
measurement tasks, the PHASCOPE® PMP10 is particularly
suitable for the following:
• Measuring coating thickness of nickel on steel
• Measuring zinc or copper on steel – despite rough
surfaces and complex surface geometries
• Measuring the thickness of non-ferrous metals on
non-ferrous metals, given sufficient difference in
conductivity, e.g. copper on brass or bronze
• Measuring the thickness of non-ferrous metals on
insulating substrates, such as copper layers on
circuit boards.

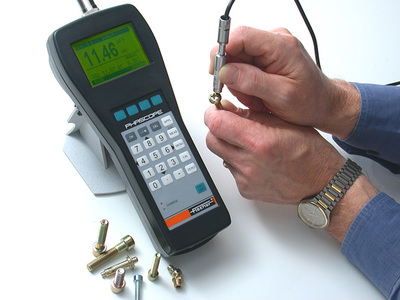

The ESD2.4 probe is particularly well-suited for small parts, because
re-calibration for the specific measuring spot geometry is typically
not required
Measuring copper thickness in through-holes using the
ESL080B probe
Measuring on rough surfaces, Zn/Fe with the ESD20Zn probe
3
Instrument features
• Extensive evaluation and statistics functions
• Outlier control and tolerance monitoring options
• Various languages to choose from
• Battery and/or continuous operation via plug-in
charger (included)
• Storage of up to 20,000 readings
• Data transfer via RS232 interface
Probe style Model number Measurement range Applications
ESL080B 5-100 μm Measuring copper thickness in PCB
through-holes with diameter range
0.8 – 2mm.
ESL080V 5-100 μm Measuring copper thickness in PCB
through-holes, especially on thick
PC Boards.
ESD20Cu 1 -270 μm Measuring copper thickness on PC
Boards.
ESD20Zn 1-200 μm (Cu/Fe)
2-200 μm (Zn/Fe)
Measuring NF coatings on magnetic
substrates, e.g. zinc/iron or copper/
iron.
Irrespective of rough surfaces or
protective lacquers.
NF coatings with high electrical
conductivity on NF substrates with low
conductivity, e.g. copper/brass.
ESD20Ni 2-100 μm Ni/Fe (60 kHz)
or
1-50 μm Ni/Fe (240 kHz)
Measuring nickel layers on iron or
ferromagnetic steel.
Irrespective of rough surfaces or
protective lacquers.
ESD2.4 1-150 μm Measuring NF coatings on magnetic
substrates, zinc/iron or copper/iron.
Irrespective of rough surfaces or
protective lacquers. Particularly well
suited for small parts due to small
sensor.
Software FISCHER DataCenter
Indispensible for the quick and easy transfer of data
from the PHASCOPE® PMP10 to a computer, FISCHER
DataCenter software is a powerful tool that also
offers extensive graphic display and statistical analysis
functions for quality control: statistical process
control charts, cumulative frequency diagrams and
FISCHER’s own FDD® (factory diagnosis diagram).
The built-in report editor enables measurement data
to be conveniently processed, archived and printed
out as individual inspection reports.
Standard Content of shipment Order no.
• PHASCOPE® PMP10 with accessories 603-322
• Software FISCHER DataCenter 604-575
