Long Stroke Manual Test Stand- imada HV series
- Giá : Liên hệ
- MASP : HV-500NII, HV-1000N, HV-3000N
- Nhà sản xuất : IMADA
- - Fit for measurement of larger or extensible samples due to the longer stroke. - More stable measurement due to handle operation.
Chi tiết Sản phẩm

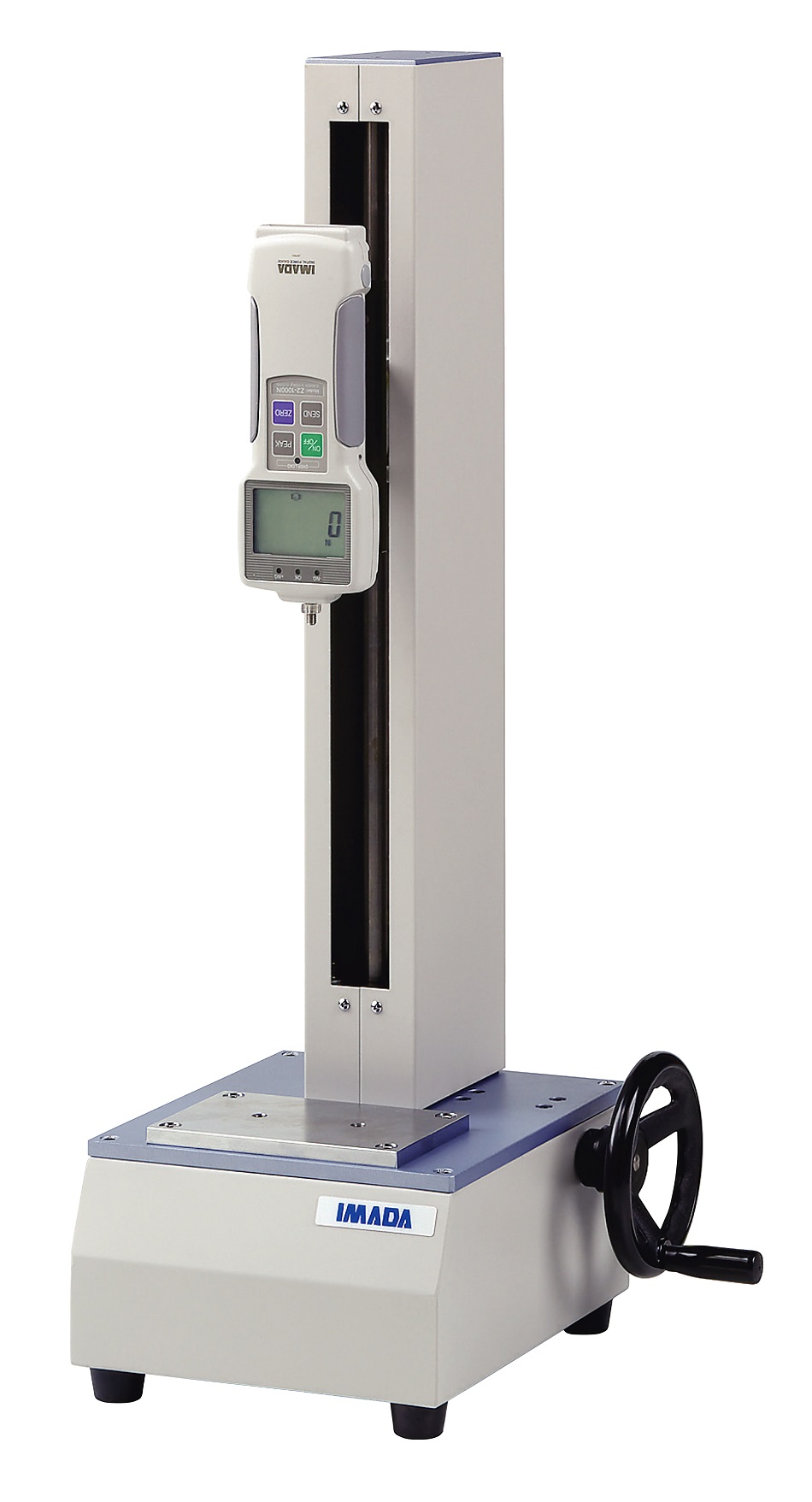

IMADA MANUAL TEST STAND
Code : HV-500NII, HV-1000N, HV-3000N
Brand : Imada
Imada Manual Test Stand
HV-500NII, HV-1000N, HV-3000N
Feature
- Fit for measurement of larger or extensible samples due to the longer stroke.
- More stable measurement due to handle operation.
Specifications for HV series Horizontal Manual Test Stand
| Model | HV-500NII | HV-1000N | HV-3000N |
|---|---|---|---|
| Capacity | 500N (50kgf) | 1000N(100kgf) | 3000N(300kgf) |
| Stroke when a force gauge is mounted (*1) | 275mm | 379mm | 379mm |
| Travel of a mounted force gauge | 2mm / a complete turn of its handle | 1.2mm / a complete turn of its handle | 0.6mm / a complete turn of its handle |
| Function | Mechanical stopper | ||
| Size | Please refer to the dimensions and specifications | ||
| Weight | Approx.10kg | Approx.18kg | Approx. 24kg |
| Gauges that can be combined (*2) | Popular and standard model | Popular, standard, high capacity model | |
| *Load cells cannot be combined. | |||
| Accessory | Grip mounting adaptor GF-1 (M6 thread) | Grip mounting adaptor GF-2?M10?M6 thread? | |
| Option | Length meter, Long stroke | Length meter | |
*1 Stroke is, in other words, max distance from the tip of a Z seires force gauge to a test stand’s table.
*2 Please contact us if you would like to combine other force gauges or load cells with the test stand.
